PUTSCH^®-Filter Presses

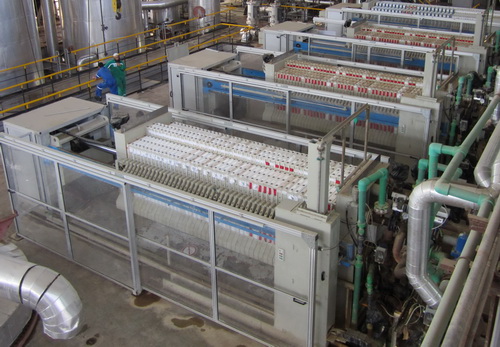

PUTSCH^® Filter Presses have been among the standard equipment for dewatering sludge and suspensions as well as for the food industry for two decade. Over 1000 PUTSCH^® Filter Presses have been in successful service worldwide.

PUTSCH Filter Presses feature many advantages:

• Great variety of different types of filter plates: frame-, chamber-, membrane plates
  PUTSCH^® Filter Presses are equipped with different filter plates according to their technical tasks. The plate size vary from 9 3/4" x 9 3/4" (250 mm x 250 mm) to 59" x 78 3/4" (1500 mm x 2000 mm). The inlets for the suspension to be filtered are optimized in their arrangement. Depemding on the application, they are located either on the top corner, in the middle on the top or in the centre. Polypropylene is used as a standard plate material, being corrosion-free and chemically resistant to acids.

• Great variety of filter cloth
  • designed according to customer's requirements
  • for hard wear with special tensile strength
  • broad chemical resistance
  • can be rinsed
  • thermally fixed seams
  • no fibre release

• Automated operations (available from 470 mm plate size)

  Fiter Presses with plate sizes from 18.5" (470 mm) to 24.8" (630 mm) can be operated either manually or semi-automatically
  PUTSCH^® designs and builds the complete electronic equipment including the software for the control of the filter presses.

• Individual design for customer orientated solutions
  PUTSCH^® offers a wide range of services: lab analysis of suspension samples, pilot plant tests and layout of the process. These services will be charged according to work.


• Operator-friendly handling
• Sturdy design, low maintenance cost
